EOL - edbak medical LCD monitor swing arm, silver (MSA02S-B)
Edbak Medical LCD monitor wall swing arm, max. 10 kg in silver (MSA02S-B)
Edbak medical LCD monitor swing arm in silver, max. 10 kg (MSA02S-B)
Edbak telescopic wall swing arm for screen size of 19 - 27" and weigth 10kg. It offers easy access to multimedia terminals. Product is dedicated to medical sector mainly.
Gas spring technology offers comfort for users. Thanks to construction of the armit can be adapted in rooms with different heights. There are possible four options of screen position.
Key features edbak Medical LCD monitor wall swing arm, max. 10 kg
- Screen size: 19 - 27"
- Max. capacity: 10 kg
- Distance wall to screen: up to 1610 mm
- Profssional gas spring loaded for smooth vertical adjustment
- Increased flexibility of 3 axis of rotation
- 360° rotation for portrait or horizontal screen option
- Full cable management
- Powder coated steel
- Easy and quick installation
- Checked in medical environment

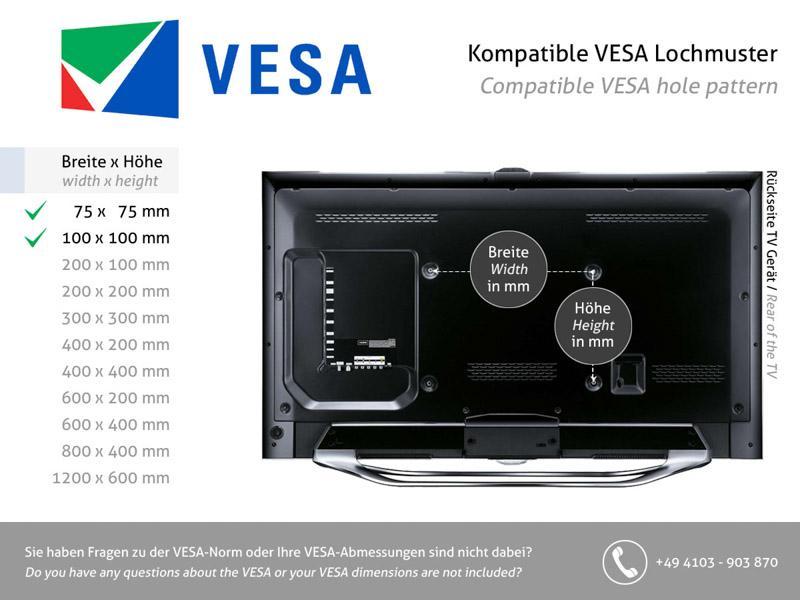

- VESA Standard: min. 75x75 - max. 100x100 mm
- Finish: silver
Does your monitor or display suit?
We will gladly check if your monitor is suitable for this edbak wall bracket. Simply send us at the end of the ordering process in the comment box your model (Manufacturer + model no.). We will then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Produktdatenblatt: |  [pdf, 640 kb] |
|---|---|

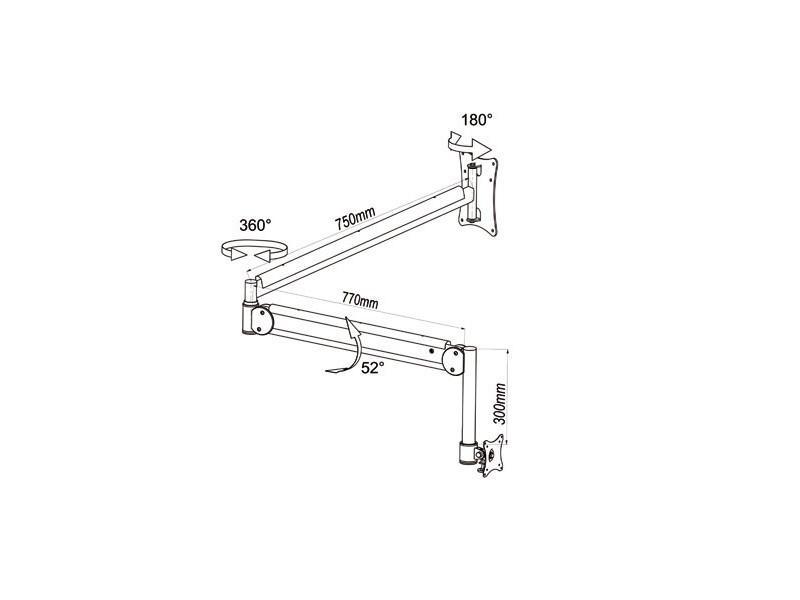

| Technische Zeichnung: | [pdf, 266 kb] |
| Montageanleitung: | [pdf, 428 kb] |
| Tragkraft: | 10 kg |
| Neigung: | 52° |
| Schwenkbereich: | 360° |
| Material: | Steel |
| Installationsmaterial enthalten: | + |
| Hersteller/Importeur: | EDBAK Sp. z o.o., Piotrowice 186, 23-107 Strzyżewice, Poland, info@edbak.pl |
| Befestigungsart: | Wandhalterung |
| Farbe: | Silber |
Falls bei einem Produkt Warn- und Sicherheitshinweise zu beachten sind, sind diese je nach Hersteller in der jeweiligen Montageanleitung oder in einer separaten pdf zu finden. Verfügbare Dokumente zu dem Produkt entnehmen Sie den vorhandenen PDF Dateien (s.o.).
